Lapp 602615S, 26 AWG 15 Conductor, Shielded, Flexible Signal and Control Cable, UNITRONIC® 190 CY
Lapp 602615S, 26 AWG 15 Conductor, Shielded, Flexible Signal and Control Cable, UNITRONIC 190 CY
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

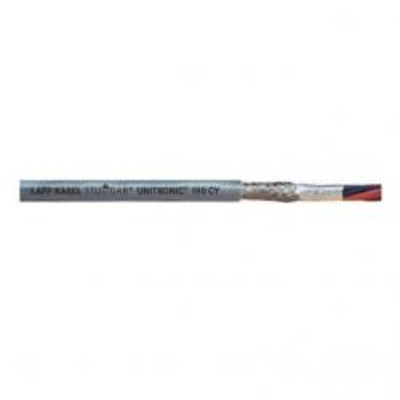

UNITRONIC® 190 CY is a multi-conductor cable for communication, signal, and control applications. It is designed for general purpose installations of electrical machinery. UNITRONIC® 190 CY has an overall foil tape & tinned copper braid for RFI & EMI protection.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
- Extended temperature range of -40°C to 105°C
- UV-resistant jacket
- Sequential foot marking for ease of installation
- For machinery: RS-232; data buses; process control instrumentation; low-voltage signaling
and interconnect - Foil tape and tinned copper braid (85% coverage); drain wire
Jacket:
Gray PVC (Polyvinylchloride)
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
SR-PVC (Semi-Rigid Polyvinylchloride)
Specifications*:
Size: 26 AWG
Conductors: 15
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.301 inches
Weight: 0.053 lbs per ft
| Stocked | Yes |
|---|---|
| # of Conductors | 15 Conductors |
| Manufacture | Lapp |
