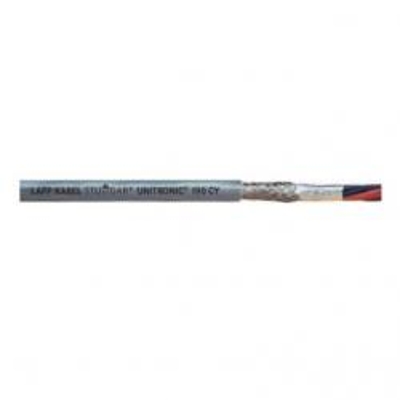

Lapp 602603S, 26 AWG 3 Conductor, Shielded, Flexible Signal and Control Cable, UNITRONIC 190 CY

General Description
UNITRONIC® 190 CY is a multi-conductor cable for communication, signal, and control applications. It is designed for general purpose installations of electrical machinery. UNITRONIC® 190 CY has an overall foil tape & tinned copper braid for RFI & EMI protection.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:

• Extended temperature range of -40°C to 105°C
• UV-resistant jacket
• Sequential foot marking for ease of installation
• For machinery: RS-232; data buses; process control instrumentation; low-voltage signaling
  and interconnect
• Foil tape and tinned copper braid (85% coverage); drain wire


Jacket:
Gray PVC (Polyvinylchloride)

Standards:
UL/CSA, RoHS, NFPA

Conductor Material:
Finely stranded tinned copper

Insulation  Material:
SR-PVC (Semi-Rigid Polyvinylchloride)

Specifications*:

Size: 26 AWG
Conductors: 3
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.192 inches
Weight: 0.024 lbs per ft
