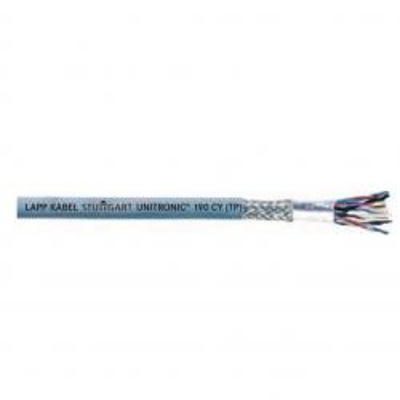

Lapp 602202TP, 22 AWG 2 Pairs, Shielded, Flexible Signal and Control Cable, UNITRONIC 190 CY

SKU LAP602202TP

$

2.670000

2.670000

/ft
How will you purchase this wire?
2.670000 2.670000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Lapp 602202TP, 22 AWG 2 Pairs, Shielded, Flexible Signal and Control Cable, UNITRONIC 190 CY

Color Length (ft.) Price
N/A

Length (ft.)

$2.67
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$1,335.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • # of Conductors

    4 Conductors

  • # of Pairs

    2 Pair

  • Manufacture

    Lapp

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
UNITRONIC® 190 CY is a multi-conductor cable for communication, signal, and control applications. It is designed for general purpose installations of electrical machinery. UNITRONIC® 190 CY has an overall foil tape & tinned copper braid for RFI & EMI protection.

Spec Sheet

Belden 5320UL Spec SheetView Spec Sheet for Complete Details (PDF)

Features:

  • Extended temperature range of -40°C to 105°C
  • UV-resistant jacket
  • Sequential foot marking for ease of installation
  • For machinery: RS-232; data buses; process control instrumentation; low-voltage signaling
    and interconnect
  • Foil tape and tinned copper braid (85% coverage); drain wire


Jacket:
Gray PVC (Polyvinylchloride)

Standards:
UL/CSA, RoHS, NFPA

Conductor Material:
Finely stranded tinned copper

Insulation  Material:
SR-PVC (Semi-Rigid Polyvinylchloride)

Specifications*:

Size: 22 AWG
Pairs: 2
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.270 inches
Weight: 0.042 lbs per ft





See Less
