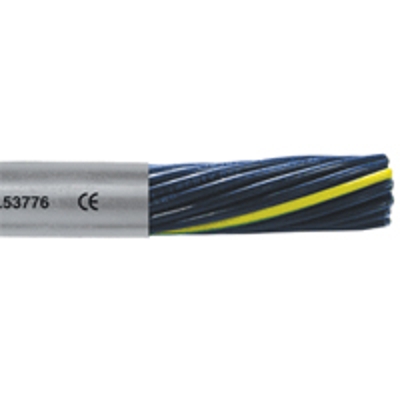

Lapp 601834, 18 AWG 34 Conductor, Unshielded, Oil Resistant Flexible Control & Power Cable, OLFLEX 190

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
ÖLFLEX® 190 is a multi-conductor cable with a highly oil-, coolant-, and solvent-resistant PVC jacket for control and power applications in an industrial environment. It is designed for use in all electrical equipment under dry, damp, and wet conditions.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:

• Extremely oil resistant (Oil Res I & II)
• Meets NFPA79 2007 machinery wiring standard
• Excellent industrial power and control cable
• Very flexible and number coded for easy routing and terminating
• Round jacket for optimal seal with a SKINTOP Strain Reli
• For Machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Controlpanels

Jacket:
Specially formulated oil-resistant gray PVC

Standards:
UL/CSA, CE, RoHS, NFPA

Conductor Material:
Finely stranded bare copper

Insulation  Material:
Specially blended PVC/nylon

Specifications*:

Size: 18 AWG
Conductors: 34
Temperature Rating: -40C to +90C
Voltage: 600V
Outside Diameter: 0.937 inches
Weight: 0.575 lbs per ft
