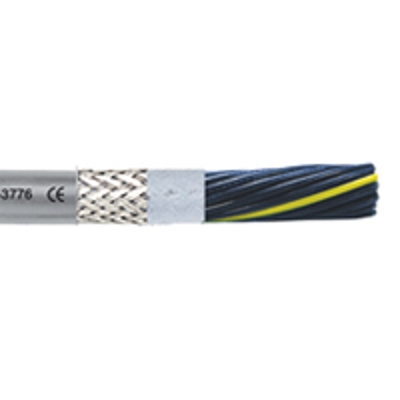

Lapp 601805CY, 18 AWG 5 Conductor, Shielded, Oil Resistant Flexible Control & Power Cable, OLFLEX 190 CY





Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Lapp 601805CY, 18 AWG 5 Conductor, Shielded, Oil Resistant Flexible Control & Power Cable, OLFLEX 190 CY

SKU
LAP601805CY-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
ÖLFLEX® 190 is a multi-conductor cable with a highly oil-, coolant-, and solvent-resistant PVC jacket for control and power applications in an industrial environment. It is designed for use in all electrical equipment under dry, damp, and wet conditions. ÖLFLEX® 190 CY is a shielded version for EMI and RFI protection.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:

  • Extremely oil resistant (Oil Res I & II)
  • Meets NFPA79 2007 machinery wiring standard
  • Excellent industrial power and control cable
  • Very flexible and number coded for easy routing and terminating
  • Round jacket for optimal seal with a SKINTOP Strain Relief
  • For Machinery: CNC machining centers, Grinding machines, Bottling equipment, Conveyors, Processing equipment, Assembly lines and Control panels

Jacket:
Specially formulated oil-resistant gray PVC

Standards:
UL, CSA, CE, RoHS, NFPA

Conductor Material:
Finely stranded bare copper

Insulation  Material:
Specially blended PVC/nylon

Shielding Material:
PVC inner jacket; tinned copper braid (85% coverage)

Specifications*:

Size: 18 AWG
Conductors: 5
Temperature Rating: -40C to +90C
Voltage: 600V
Outside Diameter: 0.416 inches
Weight: 0.123 lbs per ft

More Information
StockedYes
Wire Size18 AWG
# of Conductors5 Conductors
O.D. (Inches)0.416 in.
ManufactureLapp
