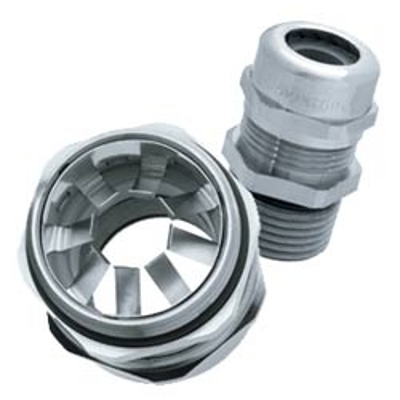

Lapp 53112240, Strain Relief Cord Connector, Metallic, Liquid Tight, Polyamide, OD Range - 0.315 - 0.551 in.

Lapp 53112240, Strain Relief Cord Connector, Metallic, Liquid Tight, Polyamide, Min OD 0.315, Max OD 0.551 inch

Description:
SKINTOP MS-SC is uniquely designed to address EMC considerations with its simplified grounding feature. In a few easy steps, the cable is grounded, strain relieved and sealed from moisture and dust in accordance with IP 68. The cable gland's contact sp rings establish a continuous electrical path from the shield of the cable to equipment ground, creating a secure shield connection.

Features:
- Optimal EMC protection, Suitable for braid shielded cable
- Minimal assembly steps
- The contact spring's unique design can accept cable diameters with wide dimensional tolerances
- Available in both standard and long length threads for heavy-wall applications

Specification:
Thread: PG
Thread type: PG-16
Construction material:  Nickel plated brass, Polyamide
Color: Metallic
Clamping range: 0.315 - 0.551
IP rating: IP68, 5 Bar
Temperature range: -30 C to +100 C
RoHS: Y

Spec Sheet

View Spec Sheet for Complete Details
