Lapp 321005, 10 AWG 5 Conductor, Heavy Duty Neoprene Cordage, SOOW, International Color Code,

Lapp 321005, Heavy Duty, Neoprene Cordage with and SOOW Approvals for Global Use

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description:

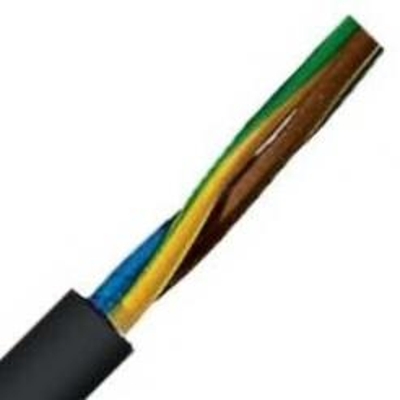

ÖLFLEX® POWER IX is a neoprene cordage with UL/CSA SOOW and H07RN-F approval. It has an international color code and a jacket which is resistant to oil, chemicals, and abrasion. ÖLFLEX POWER IX can be used in European, American, Asian, and Canadian cordage applications; one cable does the work of four.

Spec Sheet:

View Spec Sheet for Complete Details (PDF)

Features:
International approvals: UL, CSA, HAR, CE
One cable does the job of four, reducing inventory
One specification for easy and safe installation
Oil, chemical, and abrasion-resistant jacket
Ideal for high-stress applications in dry and damp environments
UV-resistant, outdoor use

Jacket:
NEO-NEOPRENE, Polychloroprene

Standards:
UL, CSA, HAR, CE

Conductor Material:
Bare copper

Insulation  Material:
EPR-Ethylene Propyene Rubber

Specifications:
Size: 10 AWG
Conductors: 5
Temperature Rating: -40C to +90C
Voltage: 600V
Outside Diameter: 0.790 inches
Weight: 0.442 lbs per ft
