Out Of Stock

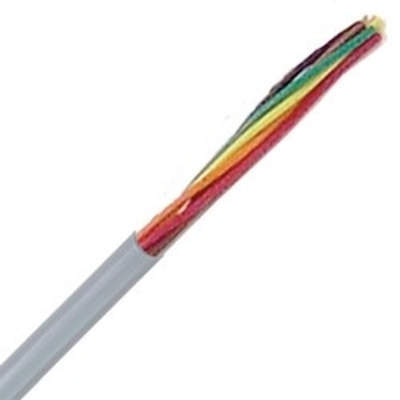

Lapp 302420, UNITRONIC® 300, 24 AWG 20 Conductor, Unshielded, Flexible Industrial Signal and Control Cable
Lapp 302420, UNITRONIC 300, 24 AWG 20C, Unshielded, Flexible Industrial Signal and Control Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
UNITRONIC® 300 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation
Jacket:
Specially formulated PVC; gray
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
Blended PVC
Specifications*:
Size: 24 AWG
Conductors: 20
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.321 inches
Weight: 0.057 lbs per ft
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 20 Conductors |
| Manufacture | Lapp |
