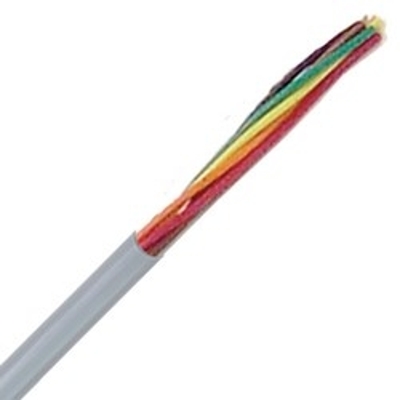

Lapp 302410, UNITRONIC® 300, 24 AWG 10 Conductor, Unshielded, Flexible Industrial Signal and Control Cable

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Lapp 302410, UNITRONIC 300, 24 AWG 10C, Unshielded, Flexible Industrial Signal and Control Cable

SKU
LAP302410-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
UNITRONIC® 300 is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation

Jacket:
Specially formulated PVC; gray

Standards:
UL/CSA, RoHS, NFPA

Conductor Material:
Finely stranded tinned copper

Insulation  Material:
Blended PVC

Specifications*:

Size: 24 AWG
Conductors: 10
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.253 inches
Weight: 0.035 lbs per ft





More Information
# of Conductors10 Conductors
ManufactureLapp
