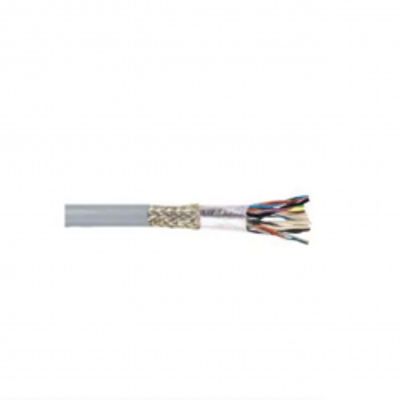

Lapp 302209STP, UNITRONIC 300 STP, 22 AWG 9 Pair, Shielded, Flexible Industrial Communication and Signal Cable
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
# of Conductors
18 Conductors
-
# of Pairs
9 Pair
-
Manufacture
Lapp
More information
General Description
UNITRONIC® 300 STP is a multi-pair, low voltage communication, signal, and control cable with an overall shield for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. UNITRONIC® 300 STP has an overall foil tape and tinned copper braid shield for maximum RFI & EMI protection.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation
Jacket:
Specially formulated PVC; gray
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
Blended PVC
Specifications*:
Size: 22 AWG
Pairs: 9
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.459 inches
Weight: 0.130 lbs per ft
