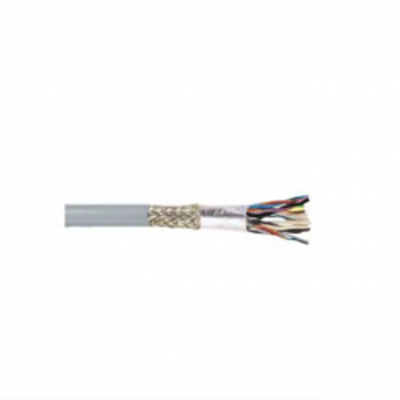

Lapp 301815STP, UNITRONIC® 300 STP, 18 AWG 15 Pair, Shielded, Flexible Industrial Communication and Signal Cable

Min: 25 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Lapp 301815STP, UNITRONIC 300 STP, 18 AWG 15 Pair, Shielded, Flexible Industrial Communication and Signal Cable

SKU
LAP301815STP-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
UNITRONIC® 300 STP is a multi-pair, low voltage communication, signal, and control cable with an overall shield for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. UNITRONIC® 300 STP has an overall foil tape and tinned copper braid shield for maximum RFI & EMI protection.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation

Jacket:
Specially formulated PVC; gray

Standards:
UL/CSA, RoHS, NFPA

Conductor Material:
Finely stranded tinned copper

Insulation  Material:
Blended PVC

Specifications*:

Size: 18 AWG
Pairs: 15
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.836 inches
Weight: 0.544 lbs per ft





More Information
# of Conductors30 Conductors
# of Pairs15 Pair
ManufactureLapp
