Lapp 301802S, UNITRONIC 300 S, 18 AWG 2C, Shielded, Flexible Industrial Signal and Control Cable
$
3.440000
3.440000
/ftProduct Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
30 AWG
-
# of Conductors
2 Conductors
-
Manufacture
Lapp
More information
General Description

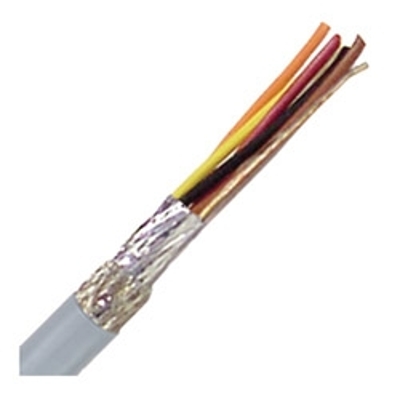

UNITRONIC® 300/300 S is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. UNITRONIC® 300 S has a foil tape and tinned copper braid shield for maximum RFI & EMI protection.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
Extended temperature rating of -40°C to +105°C
Flexible design for ease of routing
Suitable for use in cable tray
Oil- and UV-resistant jacket (Oil Res I)
Sequential foot marking for ease of installation
Jacket:
Specially formulated PVC; gray
Standards:
UL/CSA, RoHS, NFPA
Conductor Material:
Finely stranded tinned copper
Insulation Material:
Blended PVC
Specifications*:
Size: 18 AWG
Conductors: 2
Temperature Rating: -40°C to 105°C
Voltage: 300V
Outside Diameter: 0.266 inches
Weight: 0.053 lbs per ft
