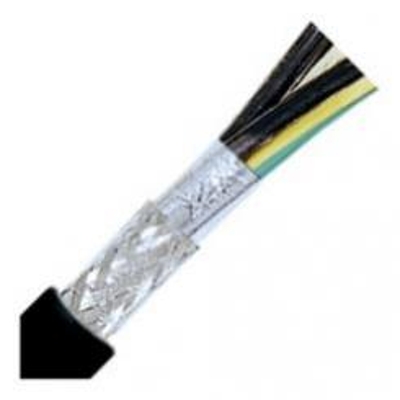

Lapp 2216180, 16 AWG 18/C Shielded Flexible Tray Cable, TC-ER, UL/CSA

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
ÖLFLEX® TRAY II CY is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure-extruded jacket and fine copper stranding for excellent flexibility, making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor. ÖLFLEX® TRAY II CY has Lapp’s new double laminated foil tape and tinned copper braid shield for improved effectiveness.

Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved exibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification

Jacket:
Specially formulated oil-resistant black PVC

Standards:
UL, ULTC, CSA, CE, RoHS, NFPA

Conductor Material:
Finely stranded bare copper

Insulation  Material:
Specially blended PVC/nylon

Shielding:
Double laminated foil tape; tinned copper braid (70% coverage)

Color Code:
Black with white numbers, plus green/yellow ground

Specifications*:

Size: 16 AWG
Conductors: 18
Temperature Rating: -40C to +90C
Voltage: 600/1000 Volt
Outside Diameter: 0.683  inches
Weight: 0.346 lbs per ft
