Lapp 221204, 12 AWG 4 Flexible Tray Cable, TC-ER, UL/CSA

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

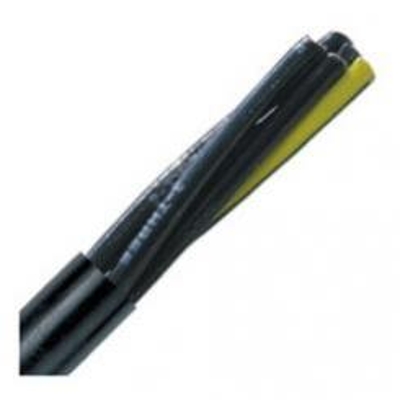

Lapp 221204, 12 AWG 4/C Flexible Tray Cable, TC-ER, UL/CSA

SKU
LAP221204-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
ÖLFLEX® TRAY II is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure-extruded jacket and fine copper stranding for excellent flexibility, making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor.

Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved exibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification

Jacket:
Specially formulated oil-resistant black PVC

Standards:
UL, ULTC, CSA, CE, RoHS, NFPA

Submersible Pump (14 AWG & larger)

Conductor Material:
Finely stranded bare copper

Insulation  Material:
Specially blended PVC/nylon

Color Code:
Black with white numbers, plus green/yellow ground

Specifications*:

Size: 12 AWG
Conductors: 4
Temperature Rating: -40C to +90C
Voltage:
UL/CSA TC = 600V  / UL WTTC/CSA AWM= 1000V
Outside Diameter: 0.460  inches
Weight: 0.152 lbs per ft





More Information
StockedYes
Wire Size12 AWG
# of Conductors4 Conductors
O.D. (Inches)0.46 in.
ManufactureLapp
