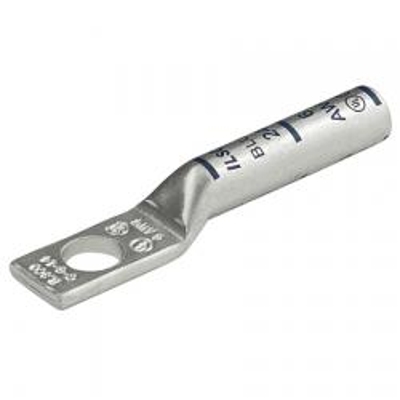

Ilsco CLNS-1-38 1 AWG Copper Compression Lug, 3/8 in, 1-Hole Stud, Long Barrel
Product Details
Learn everything you want to know about this product to make an informed purchase***SHIPS WITHIN 3-4 BUSINESS DAYS FROM THE FACTORY***
Ilsco CLNS-1-38 1 AWG Copper Compression Lug, 3/8 in, 1-Hole Stud, Long Barrel
Features
• Manufactured from high strength seamless copper tubing
• Electro-Tin plated
• Chamfered entry
• Color coded
• Suitable for use in circuits rated 35KV or less, proper high
voltage spacing and insulation techniques must be used
• UL Listed and CSA Certified with ILSCO and major
competitor’s compression tools
• UL467 Listed 500 kcmil - 8 AWG , #8 - #2 SOL
• Rated to 90˚ C
Wire Size:
#1 AWG
Alt Wire Size:
#2 FLEX
Expanded Wire Range:
1-6 AWG
Stud Hole Size:
3/8 Inches
Stud Hole Diameter:
0.406 inches
O.D:
0.468 inches
I.D:
0.359 inches
Material:
Copper
Color Code:
Green
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Barrel Size | Long |
|---|
