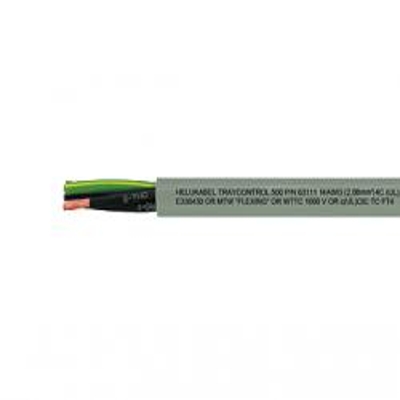

Helukabel 63112, 16-6C Traycontrol 500, Flexible Tray Cable 600V

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Helukabel 63112, 16-6C Traycontrol 500, Oil Resistant, Flexible Tray Cable 600V

SKU
HEL63112-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description
HELUKABEL® TRAYCONTROL® 500 is a flexible, oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79 edition 2012. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life for industrial applications in dry, damp and wet environments.

Applications:
Direct burial rated, production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification
• Self-extinguishing and flame retardant according to CSA FT4

Jacket:
PVC-control cable according to UL-Std.1277 and UL-Std.2277

Standards:
UL, ULTC, CSA, NFPA

Conductor Material:
Bare Copper

Insulation  Material:
Specially blended PVC/transparent nylon

Color Code:
Black with white numbers, plus green/yellow ground

Specifications:

Size: 16 AWG
Conductors: 6
Temperature Rating: UL+CSA TC -40°C to +90°C, UL/AWM -40°C to +90°C, flexing -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 0.402  inches
Weight: 0.110 lbs per ft

More Information
StockedYes
Wire Size30 AWG
# of Conductors6 Conductors
