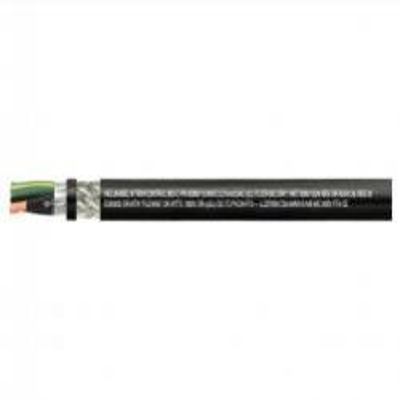

Helukabel 63061, 16-25C Traycontrol, Oil Resistant, Flexible Screened Tray Cable 600V

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Helukabel 63061, 16-25C Traycontrol, Oil Resistant, Flexible Screened Tray Cable 600V

SKU
HEL63061-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description
NFPA 79 Edition 2012 compliant, screened, flexible power cable to 600 V (WTTC 1000 V), for all machinery in new plant construction, Torsion resistant, exceptional flexibility and abrasion resistance. Suitable for installation in dry, humid and damp environments, outdoors and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants

Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification
• Self-extinguishing and flame retardant according to CSA FT4
•Braided screening of tinned copper wires, coverage approx. 85%
•Separating Foil
•Torsion resistant for wind power application

Jacket:
PVC-power cable according to UL-Std.1277 and UL-Std.2277

Standards:
UL, ULTC, CSA, NFPA

Conductor Material:
Bare Copper

Insulation  Material:
Specially blended PVC/nylon

Color Code:
Black with white numbers, plus green/yellow ground

Specifications:

Size: 16 AWG
Conductors: 25
Temperature Rating: UL+CSA TC -40°C to +90°C,  AWM -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 0.768 inches
Weight: 0.444 lbs per ft

More Information
StockedYes
Wire Size30 AWG
# of Conductors25 Conductors
