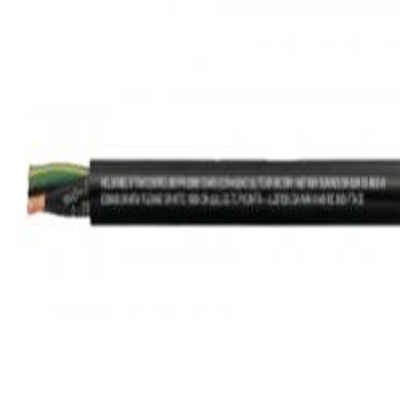

Helukabel 62985, 4-5C Traycontrol, Oil Resistant, Flexible Tray Cable 600V

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description
NFPA 79 Edition 2012 conformant flexible power cable up to 600 V (WTTC 1000 V), for all machinery in new plant construction. Torsion resistant, exceptional flexibility and abrasion resistance. Suitable for installation in dry, humid and damp environments, outdoors and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants.

Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Spec Sheet

View Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification
• Self-extinguishing and flame retardant according to CSA FT4

Jacket:
PVC-power cable according to UL-Std.1277 and UL-Std.2277

Standards:
UL, ULTC, CSA, NFPA

Conductor Material:
Bare Copper

Insulation  Material:
Specially blended PVC/nylon

Color Code:
Black with white numbers, plus green/yellow ground

Specifications:

Size: 4 AWG
Conductors: 5
Temperature Rating: UL+CSA TC -40°C to +90°C,  AWM -40°C to +90°C, flexing -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 1.18  inches
Weight: 1.095 lbs per ft
