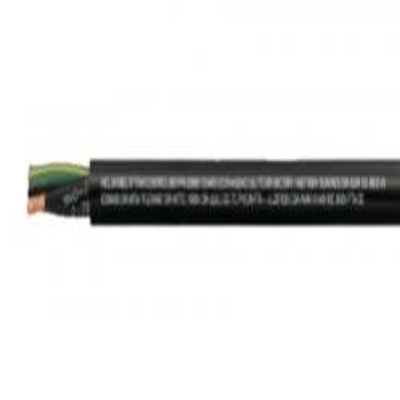

Helukabel 62934, 16-18C Traycontrol, Oil Resistant, Flexible Tray Cable 600V
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.
General Description
NFPA 79 Edition 2012 conformant flexible power cable up to 600 V (WTTC 1000 V), for all machinery in new plant construction. Torsion resistant, exceptional flexibility and abrasion resistance. Suitable for installation in dry, humid and damp environments, outdoors and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants.
Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
Features:
• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification
•Self-extinguishing and flame retardant according to CSA FT4
Jacket:
PVC-power cable according to UL-Std.1277 and UL-Std.2277
Standards:
UL, ULTC, CSA, NFPA
Conductor Material:
Bare Copper
Insulation Material:
Specially blended PVC/nylon
Color Code:
Black with white numbers, plus green/yellow ground
Specifications:
Size: 16 AWG
Conductors: 18
Temperature Rating: UL+CSA TC -40°C to +90°C, AWM -40°C to +90°C, flexing -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 0.646 inches
Weight: 0.289 lbs per ft
Stocked | Yes |
---|---|
Wire Size | 30 AWG |
# of Conductors | 18 Conductors |
