Helukabel 59773, 26-20PR Traycontrol, Oil Resistant, Flexible Screened Data and Control Cable 300V

SKU HEL59773
How will you purchase this wire?
0.000000 0.000000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Helukabel 59773, 26-20PR Traycontrol, Oil Resistant, Flexible Screened Data and Control Cable 300V

Color Length (ft.) Price
N/A

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • # of Conductors

    40 Conductors

  • # of Pairs

    20 Pair

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

General Description

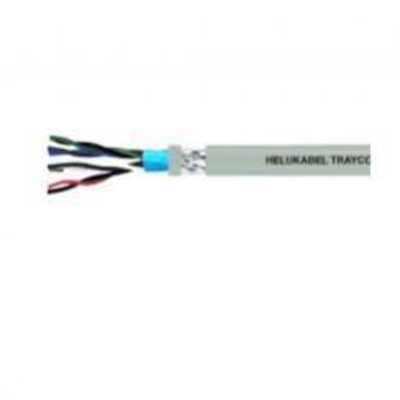

HELUKABEL® TRAYCONTROL® 300-C TP is a screened, twisted pair data and control cable. Cross-sections with PLTC-ER and ITC-ER approval suitable for open, unprotected installation in cable trays to the machine; their outstanding oil resistance (OIL RES I & II) makes them ideally suited as connecting and joining cables and also for control, signal and measuring systems in industrial plants. The flexible cable structure facilitates installation inside and outside of machines and switch cabinets. The double-screening with aluminium foil (100% coverage) and copper braid (approx. 85% coverage) guarantee superior EMC protection.

Applications:
Tool machines, control panels, measuring devices, production automation, cable ducts, renewable energies.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved flexibility
• Easier to pull than standard tray cables, minimizing labor costs
• Self-extinguishing and flame retardant according to CSA FT4
•Braided screening of tinned copper wires, coverage approx. 85%
•Separating Foil

Jacket:
PVC

Standards:
UL, CM, AWM 2517
Rated OIL RES I & II
NEC Art. 725, 760, & 800, NFPA 79
CSA CMG FT4, AWM I/II A/B FT4

Conductor Material:
Tinned Copper

Insulation  Material:
Specially blended PVC

Specifications:

Size: 26 AWG
Pairs: 20
Temperature Rating: -25°C to +105°C
Voltage: 300 V
Outside Diameter: 0.465 inches
Weight: 0.123 lbs per ft
