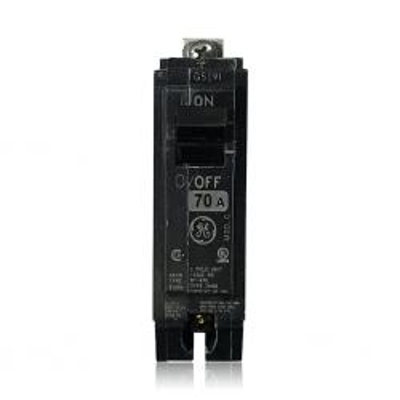

GE THQB1170, Mini Bolt On Circuit Breaker, 1 Pole, 70 Amp, 120/240 VAC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

GE THQB1170, Mini Bolt On Circuit Breaker, 1 Pole, 70 Amp, 120/240 VAC

SKU
GETHQB1170

Product Details

Learn everything you want to know about this product to make an informed purchase

General Electric THQB1170, Mini Bolt On Circuit Breaker, 1 Pole, 70 Amp, 120/240 VAC, 6-1/0 Copper, 4-1/0 Aluminum

Description
General Electric Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. For use with GE AQ Lighting Panels, and is suitable for Reverse Feed.


Max. AIR Rating
10 kA

Voltage Rating
120/240 VAC

Amp Rating
70

Wire Size
6 to 1/0  Copper
4 to 1/0  Aluminum


Length
3.28"

Width
1.00"

Depth
2.38"

Standards
UL Listed
CSA Certified
GSA Compliance


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
StockedYes
Wire Size30 AWG
ManufactureGE
Mounting TypeBolt On
Number of Poles1
Amps70
