$500.00
Low Availability

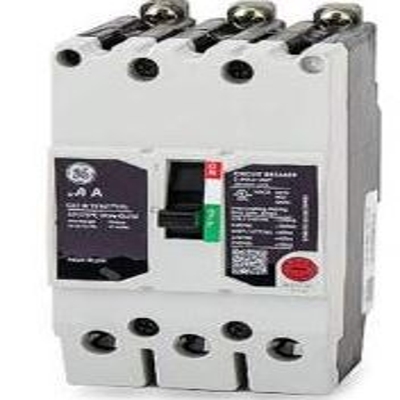

GE TEYD3045B, Bolt On, Circuit Breaker, 3 Pole, 45 Amp, 277/480 VAC, 25 kA
Product Details
Learn everything you want to know about this product to make an informed purchaseGE TEYD3045B, Bolt On, Circuit Breaker, 3 Pole, 45 Amp, 277/480 VAC, 25 kA, 10 AWG to 4 AWG (Copper, Aluminum)
Description
The TEY family of circuit breakers (TEY, TEYF, TEYD, TEYH, and TEYL) are one-inch wide per pole, compact, bolt-on circuit breakers for use on grounded 480Y/277 Vac systems, and are typically installed within Lighting Panelboards, including GE A-Series.
Max. AIR Rating
25 kA
Voltage Rating
277/480 VAC
Amp Rating
45
Phase Connection
ABC
Wire Size
10 AWG to 4 AWG (Copper, Aluminum)
Length
5.20"
Width
3.00"
Depth
3.00"
Standards
UL Listed, cUL
CSA Certified
Spec Sheet
Stocked | Yes |
---|---|
Wire Size | 30 AWG |
Manufacture | GE |
Mounting Type | Bolt On |
Number of Poles | 3 |
Amps | 45 |
