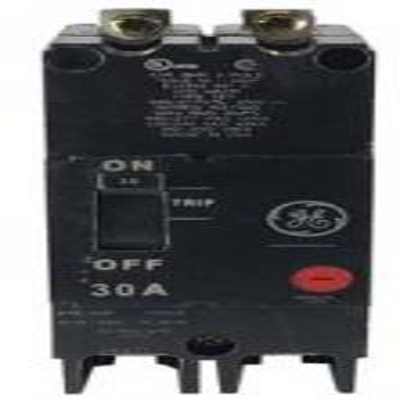

GE TEY230, Bolt On Circuit Breaker, 2 Pole, 30 Amp, 277/480 VAC

SKU GETEY230

dollar

$218.67
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Manufacture

    GE

  • Mounting Type

    Bolt On

  • Number of Poles

    2

  • Amps

    30

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

GE TEY230, Bolt On Circuit Breaker, 2 Pole, 30 Amp, 277/480 VAC, 14 AWG to 10 AWG Copper/Aluminum, Non-Interchangeable Trip

Description
The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories.


Max. AIR Rating
14 kA

Voltage Rating
277/480 VAC
250 VDC

Amp Rating
30

Wire Size
14 AWG to 10 AWG  Copper
14 AWG to 10 AWG  Aluminum

Length
5.25"

Width
2.00"

Depth
3.06"

Standards
UL Listed
CSA Certified

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details
