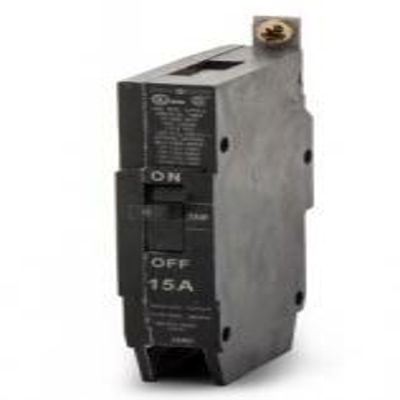

GE TEY115, Molded Case Circuit Breaker, 1 Pole, 15 Amp, 277 VAC, 125 VDC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

GE TEY115, Molded Case Circuit Breaker, 1 Pole, 15 Amp, 277 VAC, 125 VDC

SKU
GETEY115

Product Details

Learn everything you want to know about this product to make an informed purchase

General Electric TEY115, Molded Case Circuit Breaker, 1 Pole, 15 Amp, 277 VAC, 125 VDC, 14-10 AWG (Copper, Aluminum)

Description
GE TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability.

Max. AIR Rating
14 kA

Voltage Rating
277 VAC/125 VDC

Amp Rating
15

Wire Size
14 to 10  Copper, Aluminum

Length
5.25"

Width
1.00"

Depth
3.06"

Standards
UL Listed
CSA Certified


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
StockedYes
Wire Size30 AWG
ManufactureGE
Number of Poles1
Amps15
