Corning MIC

SKU
COR-012T88-33190-29

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

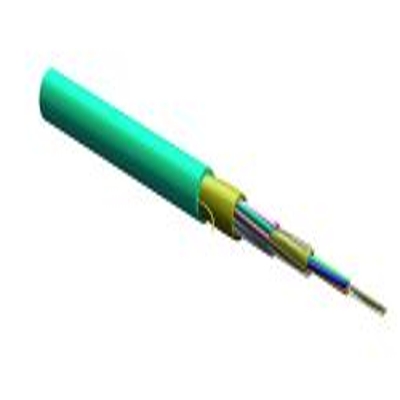

Corning MIC® plenum cables are designed for use in plenum, riser and general purpose environments for in- trabuilding backbone and horizontal installations. These multifiber cables use 900 μm TBII® buffered fibers to al- low easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flame-retardant outer jacket. The all-dielectric cable construction requires no ground- ing or bonding. MIC plenum cables are ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations. The MIC plenum cables meet the application requirements of the National Electrical Code® (NEC®) Article 770 and are OFNP and FT-6 listed.

Spec Sheet

Belden 1505A Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Environment:   Indoor
Application:   General Purpose Horizontal, Vertical Riser, Plenum
Cable Type:   Tight-Buffered
Product Type:   Distribution
Flame Rating:   Plenum (OFNP)
Fiber Category:  50 µm MM (OM4)



More Information
StockedYes
Wire Size30 AWG
