Corning FREEDM One Tight-Buffered Cable, Plenum, 6 Strand, Multimode (OM3)

SKU
006T8P3118029-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 5000'. Please call for longer put ups.

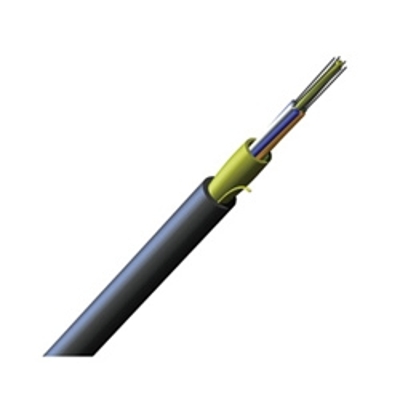

Corning FREEDM One Tight-Buffered Cable, Plenum, 6 Strand, Multimode (OM3)

General Description
Corning Cable Systems FREEDM® One Cables are flame -retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. The tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates need for fan-out kits. The design features TIA-598 color-coded 900 μm TBII® Buffered Fibers for easy identification, consistent stripping and direct termination. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative waterblocking technology is ideal for OSP applications. The all-dielectric cable construction requires no grounding or bonding and the UVresistant, flame-retardant jacket is rugged, durable and easy to strip. This cable is available in 12 different jacket colors - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/ outdoor cable jacket. Black is the standard jacket color.

Spec Sheet

Belden 1505A Spec SheetView Spec Sheet for Complete Details

Specifications
Environment:  Indoor/Outdoor Cables
Application:     Aerial, Direct Buried, Duct, General Purpose Horizontal, (Vertical Riser), Plenum
Cable Type:    Tight-Buffered
Product Type: Dielectric
Fiber Category:50 µm MM (OM3)
Part Number:   006T8P-31180-29



More Information
Wire Size30 AWG
