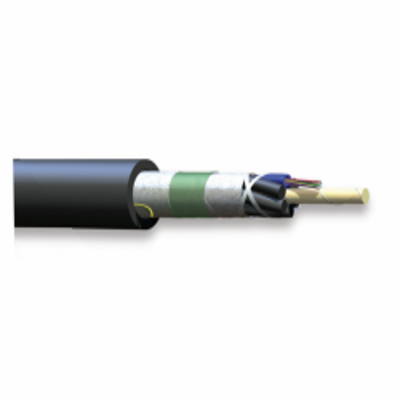

Corning 24 Fiber LSZH Loose Tube, 62.5 Multimode OM1, Gel Free, Fiber Optic Cable





Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Corning 24 Fiber LSZH Loose Tube, 62.5 Multimode OM1, Gel Free, Fiber Optic Cable

SKU
024KUZT4130D2N-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Corning 24 Fiber LSZH Loose Tube, 62.5 Multimode OM1, Gel Free, Tray-Rated Fiber Optic Cable

General Description
Corning Industrial LSZH™ fiber optic cables are designed for industrial building backbones and harsh environments atypical of traditional datacom systems. Based on proven stranded loose tube cable designs, these industrial cables are flame -retardant and have been tested to meet mechanical/environmental conditions exceeding the requirements set for traditional datacom cables. The 250 μm color-coded individual fibers offer quick and easy identification during installation. Corning Industrial LSZH™ cables provide life-safety benefits for industrial applications through the cables' construction. Many traditional data communication cables contain halogens in the jacket compound, which pose little risk in the controlled and protected environment of typical building air spaces, such as behind walls, under floors and in conduit. However, cables deployed in industrial applications, particularly on the plant floor, are typically exposed to greater risk of fire, extreme temperatures or chemical exposure. This often makes halogen cables inappropriate for industrial environments. Corning Industrial LSZH™ cables eliminate these risks in the event of a fire in the industrial environment. In addition, the LSZH compound does not drip when superheated; the material burns to ash, eliminating the onset of secondary fires. When cables containing halogens ignite, they emit highly reactive gases that can be harmful if inhaled. When halogens combine with water, acids are formed. These acids damage both living tissue and inorganic materials, such as metal and electronic equipment. Corning industrial LSZH cables eliminate these risks in the event of a fire in the industrial environment. In addition, the LSZH compound does not drip when superheated; the material burns to ash, eliminating the onset of secondary fires.

Spec Sheet

Belden 1505A Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Environment:Indoor/Outdoor
Application:   Aerial, Direct Buried, Duct, Tray Rated, (General Purpose Horizontal)
Cable Type:Loose Tube
Product Type:Dielectric
Fiber Category62.5 µm MM (OM1)



More Information
Wire Size30 AWG
