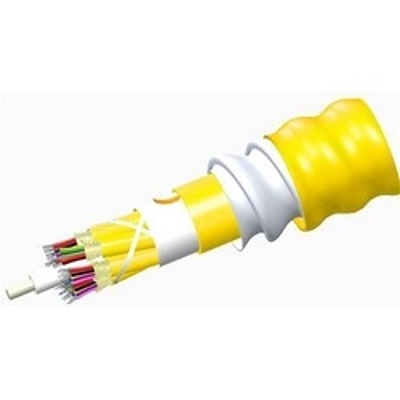

Commscope P-048-DZ-8W-FMUYL, 48 Fiber, OS2, Interlocking Armor, Plenum Jacket

Commscope P-048-DZ-8W-FMUYL, 760127837, TeraSPEED OS2, Plenum Distribution Cable, Interlocking Aluminum Armored with Plenum jacket, 48 fiber multi-unit with 12 fiber subunits

Description
 For installations where conduit or innerduct are typically installed, CommScope offers premise fiber optic cables inside an interlocking armor that provides protection against damage due to extreme conditions. This construction can eliminate the need f or installing conventional conduit or innerduct and then pulling in the fiber optic cable, thus reducing the overall time and cost of the installation. CommScope’s FiberGuard Interlocking Armored Cable offers outstanding mechanical protection for sensi tive cables combined with excellent flexibility and reduces the potential of data transmission loss/failures caused by accidental cut through, crushing, mechanical vibration and rub through damage via adjacent cables or other objects.

Product Classification
Portfolio              Commscope
Product Type      Fiber indoor cable

Standards And Qualifications
Cable Qualification Standards      ANSI/ICEA S-83-596   |   Telcordia GR-409

Flame Test Specifications
Flame Test Listing      NEC OFCP (ETL) and c(ETL)
Flame Test Method      NFPA 262

General Specifications
Cable Type                Distribution
Construction Type      Armored
Subunit Type             Gel-free

Construction Materials
Fiber Type Solution      G.652.D and G.657.A1 , TeraSPEED
Total Fiber Count         48
Armor Type                   Interlocking aluminum
Fiber Type                    G.652.D and G.657.A1, TeraSPEED
Fiber Type, quantity      48
Fibers per Subunit, quantity      12
Jacket Color                 Yellow

Spec Sheet

View Spec Sheet for Complete Details
