Commscope P-012-DS-8W-FSUGR, 12 Fiber, OS2, Indoor, Plenum, Green Jacket

SKU
P-012-DS-8W-FSUGR

Product Details

Learn everything you want to know about this product to make an informed purchase

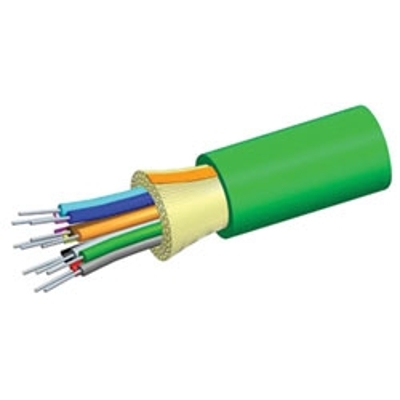

Commscope P-012-DS-8W-FSUGR, 760133694, TeraSPEED, OS2, Indoor, Plenum Distribution Cable, Tight Buffered, with Green jacket, 12 fiber single-unit

Description
The CommScope TeraSPEED Solution was developed to provide a fiber optic solution that is the metro/campus backbone for today’s performance requirements. TeraSPEED cables provide the widest possible usable wavelength spectrum by eliminating the high loss caused by water impurities. With this ’water peak’ eliminated, the entire spectrum from is available, allowing for future expansion of data rates and additional services by the use of cost effective coarse wavelength division multi-plexing (CWDM). The Cable is designed to cost-effectively future-proof enterprise campus backbones for next generation equipment. The cable uses a standard color tight buffered construction. The higher fiber count cable utilize a sub-unitized design with a color-coded sub units for easy identification. In addition to LC connectors, TeraSPEED Solution supports the duplex SC connector as well as the ST II+ connector. An extensive line of wall and rack mounted cabinets and telecommunication outlets for building entrance facilities, equipment rooms, telephone closets/floor distributors and work areas are available. CommScope channels comprised exclusively of TeraSPEED single-mode passive products, end-to-end, are capable of delivering in accordance with application standards.

Product Classification
Portfolio              Commscope
Product Type      Fiber indoor cable

Standards And Qualifications
Cable Qualification Standards     ANSI/ICEA S-83-596   |  Telcordia GR-409

Flame Test Specifications
Flame Test Listing      NEC OFNP (ETL) and c(ETL)
Flame Test Method      NFPA 262

General Specifications
Cable Type                 Distribution
Construction Type      Non-armored
Subunit Type              Gel-free

Construction Materials
Fiber Type Solution     G.652.D and G.657.A1, TeraSPEED
Total Fiber Count         12
Fiber Type                   G.652.D and G.657.A1, TeraSPEED
Fiber Type, quantity     12
Jacket Color                 Green
