Commscope P-006-DZ-5L-FSUAQ, 6 Fiber, OM3, Interlocking Armor, Plenum Jacket

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Commscope P-006-DZ-5L-FSUAQ, 6 Fiber, OM3, Interlocking Armor, Plenum Jacket

SKU
P-006-DZ-5L-FSUAQ

Product Details

Learn everything you want to know about this product to make an informed purchase

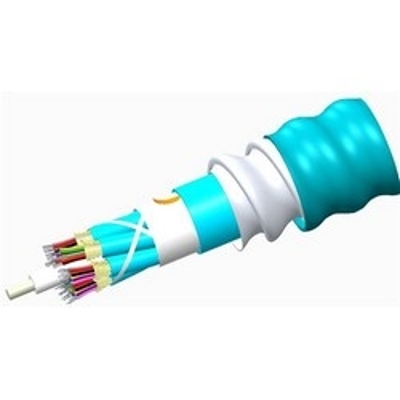

Commscope P-006-DZ-5L-FSUAQ, 760127639, LazrSPEED OM3, Plenum Distribution Cable, Interlocking Aluminum Armored with Plenum jacket, 6 fiber single-unit

Description

For installations where conduit or innerduct are typically installed, CommScope offers premise fiber optic cables inside an interlocking armor that provides protection against damage due to extreme conditions. This construction can eliminate the need for installing conventional conduit or innerduct and then pulling in the fiber optic cable, thus reducing the overall time and cost of the installation. CommScope’s FiberGuard Interlocking Armored Cable offers outstanding mechanical protection for sensitive cables combined with excellent flexibility and reduces the potential of data transmission loss/failures caused by accidental cut through, crushing, mechanical vibration and rub through damage via adjacent cables or other objects.

Product Classification
Portfolio              Commscope
Product Type      Fiber indoor cable

Standards And Qualifications

Cable Qualification Standards      ANSI/ICEA S-83-596   |   Telcordia GR-409

Flame Test Specifications
Flame Test Listing      NEC OFCP (ETL) and c(ETL)
Flame Test Method      NFPA 262

General Specifications
Cable Type                Distribution
Construction Type      Armored
Subunit Type             Gel-free

Construction Materials
Fiber Type Solution      OM3, LazrSPEED 300
Total Fiber Count         6
Armor Type                   Interlocking aluminum
Fiber Type                    OM3, LazrSPEED 300
Fiber Type, quantity      6
Jacket Color                 Aqua

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details
