Commscope D-006-LN-8W-F06NS, 6 Fiber, OS2, All-Dielectric, Gel-Free, Outdoor Loose Tube

Min: 100 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Commscope D-006-LN-8W-F06NS, 6 Fiber, OS2, All-Dielectric, Gel-Free, Outdoor Loose Tube

SKU
D-006-LN-8W-F06NS

Product Details

Learn everything you want to know about this product to make an informed purchase

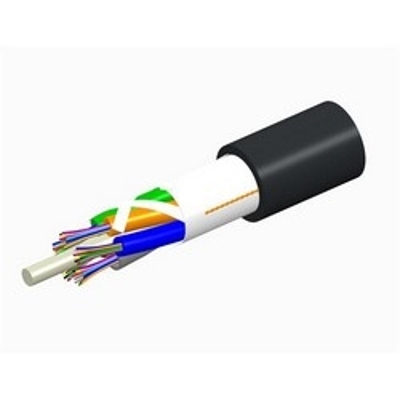

Commscope D-006-LN-8W-F06NS, 760053835, TeraSPEED, Single Jacket PE, 6 Fiber, OS2, All-Dielectric, Gel-Free, Outdoor Stranded Loose Tube

Description
 CommScope all dry outside plant stranded loose tube cables deliver the same proven quality and performance offered in all CommScope cabling solutions. The armored and all-dielectric designs are suitable for direct buried, aerial and conduit applications. The construction features the use of dry water blocking elements and reduced diameter buffer tubes, yielding a light weight, smaller cable. The result is a fiber optic cable that is an ideal transmission medium for the outside plant environment. These designs are available with any of the high performance CommScope fiber types, including TeraSPEED Zero Water Peak single-mode fiber and the LazrSPEED multimode fibers. The standard jacket material is Medium Density Polyethylene (MDPE), with an optional High Density Polyethylene (HDPE) jacket available. Additionally, the fiber and buffer tubes are color coded for easy identification. The CommScope all dry cable construction removes the need for filling gels and flooding compounds from the cable. This significantly reduces cable preparation time and eliminates the need for solvents and other consumables during cable preparation. These cables are designed to improve the cleanliness of the work environment and provides full water blocking protection for outside plant applications.

Product Classification
Portfolio              Commscope
Product Type      Fiber OSP cable (Outside Plant)

Standards And Qualifications
Cable Qualification Standards      ANSI/ICEA S-87-640   |   EN 187105   |   Telcordia GR-20

General Specifications
Cable Type                Stranded loose tube
Construction Type      Non-armored
Subunit Type             Gel-free

Construction Materials
Fiber Type Solution                  G.652.D and G.657.A1 , TeraSPEED®   |   OS2
Jacket Material                          PE
Total Fiber Count                       6
Fiber Type                                G.652.D and G.657.A1 , TeraSPEED®   |   OS2
Fiber Type, quantity                  6
Fibers per Subunit, quantity      6
Jacket Color                              Black
Jacket UV Resistance               UV stabilized

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details
