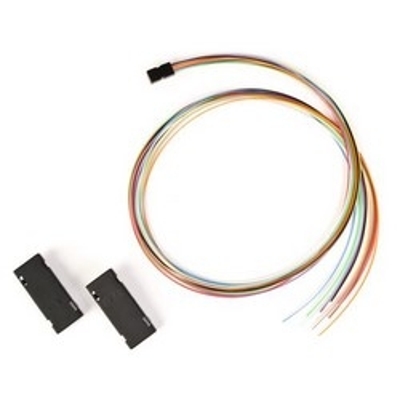

Commscope 760018838, 12 Fiber Breakout Kit, Loose Tube, LC to LC, keyed, SC to ST

Commscope 760018838, 12 Fiber Breakout Kit, Loose Tube, LC to LC, keyed,  SC to ST

Description
Breakout kits are designed to provide protection and support when terminating loose tube fiber cables because they allow putting 250 um delicate fibers into 900 um buffered coatings that are suitable for numerous applications

Product Classification
Portfolio      SYSTIMAX®
Product Type      Fiber breakout kit, rectangular

Dimensions
Height      7.62 mm   |   0.30 in
Length      43.18 mm   |   1.70 in
Tube Inner Diameter      500.00 µm
Tube Length      609.6 mm   |   24.0 in
Tube Outer Diameter      900.00 µmer      500.00 µm
Width      17.78 mm   |   0.70 in

Construction Materials
Material Type, body      Acrylonitrile butadiene styrene (ABS)
Material Type, tubing      Thermoplastic elastomer (TPE)

Environmental Specifications
Operating Temperature      -10 °C to +60 °C (+14 °F to +140 °F)

General Specifications
Color                                 Black
Compatible Interface        LC   |   LC, keyed   |   SC   |   ST
Includes:      Breakout unit   |   Instruction sheet   |   12 buffer tubes, 24 in x 900 µm   |   Snap together housing
Package Quantity      1

Spec Sheet

View Spec Sheet for Complete Details
