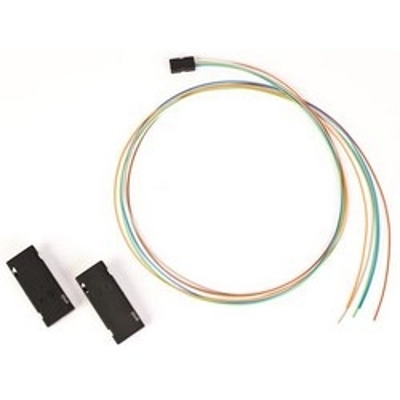

Commscope 760018820, 6 Fiber Breakout Kit, Loose Tube, LC to LC, keyed, SC to ST

Commscope 760018820, 6 Fiber Breakout Kit, Loose Tube, LC to LC, keyed,  SC to ST

Description
Breakout kits are designed to provide protection and support when terminating loose tube fiber cables because they allow putting 250 um delicate fibers into 900 um buffered coatings that are suitable for numerous applications

Product Classification
Portfolio      SYSTIMAX®
Product Type      Fiber breakout kit, rectangular

Dimensions
Height      7.62 mm   |   0.30 in
Length      43.18 mm   |   1.70 in
Tube Inner Diameter      500.00 µm
Tube Length      609.6 mm   |   24.0 in
Tube Outer Diameter      900.00 µmer      500.00 µm
Width      17.78 mm   |   0.70 in

Construction Materials
Material Type, body      Acrylonitrile butadiene styrene (ABS)
Material Type, tubing      Thermoplastic elastomer (TPE)

Environmental Specifications
Operating Temperature      -10 °C to +60 °C (+14 °F to +140 °F)

General Specifications
Color      Black
Compatible Interface      LC   |   LC, keyed   |   SC   |   ST
Includes      Breakout unit   |   Instruction sheet   |   Six buffer tubes, 24 in x 900 µm   |   Snap together housing
Package Quantity      1

Spec Sheet

View Spec Sheet for Complete Details
