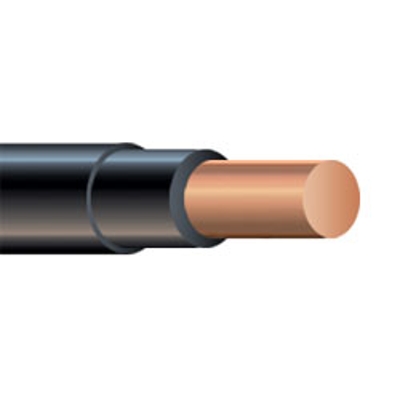

10 AWG Solid Copper Clad Tracer Wire, PE-30 Insulation

10 AWG Solid Copper Clad Pipeline Tracer/Locating Wire, PE-30 Insulation, 500ft, 1000ft or 2500ft Spool

Applications:
Flexible copper clad steel conductor with a high density Polyethylene (HMWPE) insulation that provides excellent resistance to abrasions, chemicals, oils, and moisture. Rated for direct burial or within plastic pipe to help in the detection & tracing of underground utility lines for gas, water, sewer, and telecommunication systems.

Conductor:
Solid Copper Clad Conductor

Insulation:
Polyethylene (HMWPE)

Listings & Standards:
75C Wet/Dry
30 Volts
Moisture Resistant
Chemical Resistant
Oil Resistant
Impact, Crush & Abrasion Resistant


Specifications*:

Size: 10 AWG
Stranding: Solid
Outside Diameter: 0.16 inches
Voltage: 30V
Weigth: 0.024 lbs per ft.

*Data provided on this page is subject to change based on different manufacturers variances.
