$2.50

In Stock

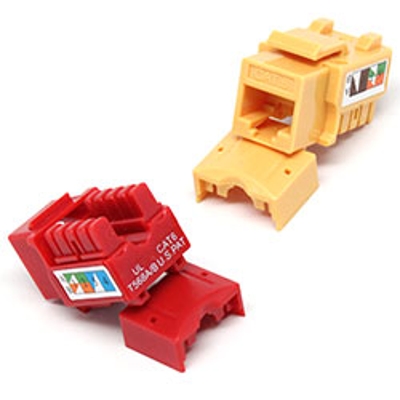

Cat6 RJ-45 Narrow Keystone Jack (UTP) / M Type (for 110)

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

CAT6 Keystone Jacks

SKU
JCKCat6

Product Details

Learn everything you want to know about this product to make an informed purchase

Cat6 RJ-45 Narrow Keystone Jack (UTP) / M Type (for 110)

Performance:
Meets Cat. 6 EIA/TIA 568B.2-1 Standard

Materials:
Plastic Body: Fireproof ABS UL-94VO
RJ-45 Jack: 8P8C 50 micro inches gold plated
PCB: FR-4/1.0mm UL-94VO
IDC Body: Fireproof ABS UL 94VO
IDC Pin: Brinze & Tinned

Label Color Code:
T568 A/B

IDC Description:
For 22-24 AWG, For 110 punch-down tool

Electrical Specifications:
Insulation Resistance: 500M ohms (min)
Contact Resistance: 20m ohms (max)
Current Rating: 1.5 Amps
DC Resistance: 0.1 ohm (max)
Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1 min.

Mechanical Specifications:
IDC Punch Down Cycle: Over 25 Cycles (min)
RJ-45 Jack Insertion Cycle: Over 2000 Cycles (min)

Operation Temperature:
-30 to 60 degree / C
