$162.86

In Stock

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

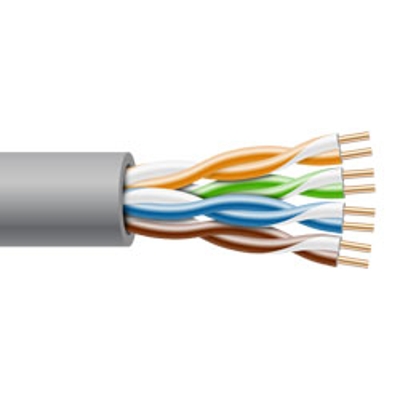

CAT6 23AWG, CMR, No Spline Cable, 1000 ft Spool

SKU
CAT6RNS-EA

Product Details

Learn everything you want to know about this product to make an informed purchase

23 AWG, CAT6 CMR, No Spline Cable

Applicable Standards:
ETL Listed Type CMR
C(ETL) listed CMR FT4
ETL Verified to ANSI/TIA‐568‐C.2, and ISO/IEC 11801
ROHS Compliant
ATM 155 Mbps
Ethernet 10BASE‐T, 100BASE‐TX, 100BASE‐VG, 100BASE‐T4
1000 Mbps 1000BASE‐T Gigabit Ethernet™ (IEEE 802.3)
16 Mbps Token Ring™ (IEEE 802.5)
Temperature Rating:  -20°C to + 75°C

Conductor:
23 AWG Soft and Annealed Bare Copper with ripcord

Insulation:
HDPE

Shield:
Unshielded

Jacket:
Flame Retardant PVC

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 23 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.205 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size30 AWG
