$184.00 /sp.

In Stock

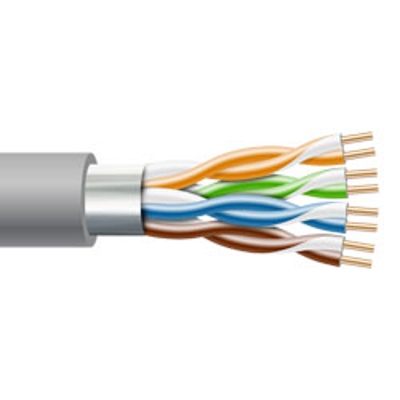

24 AWG Shielded Twisted Pair, High-Performance Data Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1000 ft. Spool
Add a length

 Free Shipping on all orders over $1000

CAT5E STP Shielded PVC, 1000ft Spool

SKU
CAT5STP

Product Details

Learn everything you want to know about this product to make an informed purchase

24 AWG Shielded Twisted Pair, High-Performance Data Cable

Applicable Standards:
- ETL Listed Type FTP
- C(ETL) listed CMG FT4 FTP
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)

Conductor:
24 AWG solid bare annealed copper

Insulation:
Polyethylene

Shield:
Al Foil Shield

Jacket:
Low-Smoke, Flame-Retardant PVC
-20°C to +75°C

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 24 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.242 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size24 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.242
