$195.00

In Stock

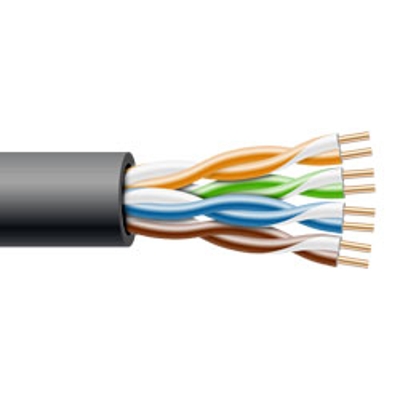

24 AWG Direct Burial Outdoor High Performance Cable, Unshielded

CAT5E PE Outdoor (Waterblock), 1000ft Spool, Unshielded

SKU
CAT5PEW-EA

Product Details

Learn everything you want to know about this product to make an informed purchase

24 AWG Direct Burial Outdoor High Performance Cable, Unshielded

Applicable Standards:
- ETL Listed Type CMX
- C(ETL) listed CMX
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)

Conductor:
24 AWG solid bare annealed copper

Insulation:
HDPE

Shield:
Unshielded

Jacket:
LDPE
-40°C to +75°C

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 24 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.205 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size24 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.205
