CAT5E Keystone Jacks, White, 25-Pack

SKU JCKCat525White

$

36.920000

36.920000

/ft
How will you purchase this wire?
36.920000 36.920000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

Each
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

CAT5E Keystone Jacks, White, 25-Pack

Grouped product items
Color Length (ft.)
White Length Each ft.
$36.92
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

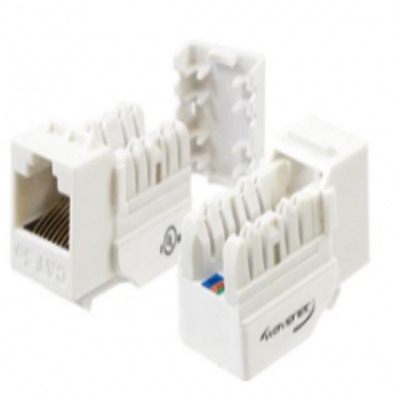

Cat5e RJ-45 Narrow Keystone Jack (UTP) / M Type (for 110)

Performance:
Meets Cat. 5e ANSI/TIA-568-C Standard

Materials:
Plastic Body: Fireproof ABS UL-94VO
RJ-45 Jack: 8P8C 50 micro inches gold plated
PCB: FR-4/1.0mm UL-94VO
IDC Body: Fireproof ABS UL 94VO
IDC Pin: Bronze & Tinned

Label Color Code:
T568 A/B

IDC Description:
For 22-24 AWG, For 110 punch-down tool

Electrical Specifications:
Insulation Resistance: 500M ohms (min)
Contact Resistance: 20m ohms (max)
Current Rating: 1.5 Amps
DC Resistance: 0.1 ohm (max)
Withstanding Voltage: 1000 VAC RMS @ 60Hz / 1 min.

Mechanical Specifications:
IDC Punch Down Cycle: Over 25 Cycles (min)
RJ-45 Jack Insertion Cycle: Over 2000 Cycles (min)

Operation Temperature:
-30° to 60° / C

See Less
