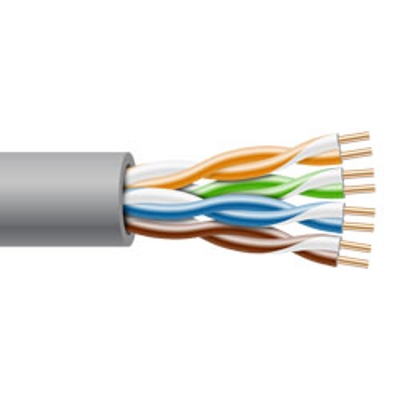

24 AWG Shielded Plenum Twisted Pair, High_Performance Data Cable
Product Details
Learn everything you want to know about this product to make an informed purchase24 AWG Stranded Twisted Pair, High-Performance Data Cable
Applicable Standards:
- ETL Listed Type CMR
- C(ETL) listed CMG FT4
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)
Conductor:
24 AWG stranded bare annealed copper
Insulation:
Polyethylene
Shield:
Unshielded
Jacket:
Low-Smoke, Flame-Retardant PVC
-20°C to +75°C
Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown
Specifications*:
Size: 24 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.212 inches
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 24 AWG |
# of Conductors | 8 Conductors |
# of Pairs | 4 Pair |
O.D. (Inches) | 0.212 |
