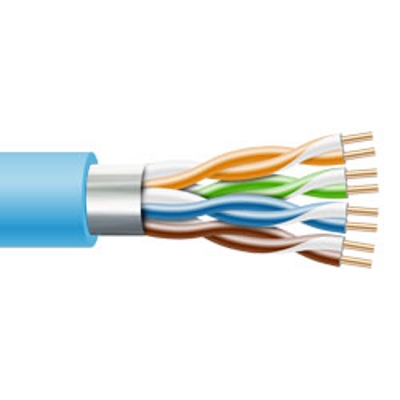

CAT5E CMP Shielded Plenum, 1000ft Spool

SKU
CAT5PSH-EA

Product Details

Learn everything you want to know about this product to make an informed purchase

24 AWG Shielded Plenum Twisted Pair, High_Performance Data Cable

Applicable Standards:
- ETL Listed Type CMP
- C(ETL) listed CMG FT6
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)

Conductor:
24 AWG solid bare annealed copper

Insulation:
FEP

Shield:
Al Foil Shield

Jacket:
Low-Smoke, Flame-Retardant PVC
-20°C to +75°C

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 24 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.233 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size24 AWG
# of Conductors8 Conductors
# of Pairs4 Pair
O.D. (Inches)0.233
