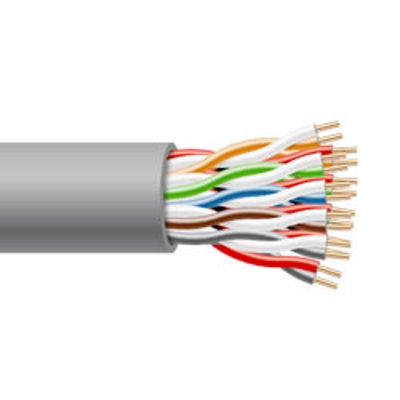

24 AWG Unshielded Twisted 25 Pair, High-Performance Data Cable

CAT3 CMR 25 Pair, 1000ft Spool

SKU
CAT3R25P-EA

Product Details

Learn everything you want to know about this product to make an informed purchase

24 AWG Unshielded Twisted 25 Pair, High-Performance Data Cable

Applicable Standards:
- ETL Listed Type CMR
- C(ETL) listed CMG FT4
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)

Conductor:
24 AWG solid bare annealed copper

Insulation:
HDPE

Shield:
Unshielded

Jacket:
Flame Retardant PVC
-20°C to +75°C

Color Code:
- Pair 1: Blue-White
- Pair 2: Orange-White
- Pair 3: Green-White
- Pair 4: Brown-White
- Pair 5: Gray-White
- Pair 6: Blue-Red
- Pair 7: Orange-Red
- Pair 8: Green-Red
- Pair 9: Brown-Red
- Pair 10: Gray-Red
- Pair 11: Blue-Black
- Pair 12: Orange-Black
- Pair 13: Green-Black
- Pair 14: Brown-Black
- Pair 15: Gray-Black
- Pair 16: Blue-Yellow
- Pair 17: Orange-Yellow
- Pair 18: Green-Yellow
- Pair 19: Brown-Yellow
- Pair 20: Gray-Yellow
- Pair 21: Blue-Violet
- Pair 22: Orange-Violet
- Pair 23: Green-Violet
- Pair 24: Brown-Violet
- Pair 25: Gray-Violet

Specifications*:

Size: 24 AWG
Number of Pairs: 25
Rip Cord: Yes
Outside Diameter: 0.394 inches

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size24 AWG
# of Conductors50 Conductors
# of Pairs25 Pair
O.D. (Inches)0.394
