BurndyYSR44FX34LTCKITC, In-Line Reducer Splice Kit, 750 MCM to 500 MCM, w/ Clear Heat Shrink and inspection window.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Burndy YSR44FX34LTCKITC, In-Line Reducer Splice Kit, 750 Flex to 500 Code, w/ Clear Heat Shrink

SKU
YSR44FX34LTCKITC

Product Details

Learn everything you want to know about this product to make an informed purchase

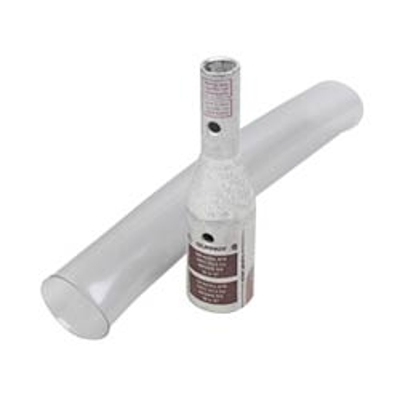

Burndy YSR44FX34LTCKITC-- In-Line Reducer Splice Kit, 750 MCM Flex (A) to 500 MCM Code (B) w/ Clear Heat Shrink and inspection window.

Description:

Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.

Color Code:
Side A Yellow, Side B Brown

Standards:
RoHS Compliance
Clear Heat Shrink -- UL224 VW1


Electrical Ratings:
KVA:
35 kV
Minimum Voltage: 600
Maximum Voltage: 35000

Specifications:

Size:
750 MCM Flex (A) to 500 Code (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 2.09 inches, Wire Strip Length (1.96 inches)
Barrel B Size: 1.69 inches, Wire Strip Length (1.60 inches)


Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet for Complete Details
