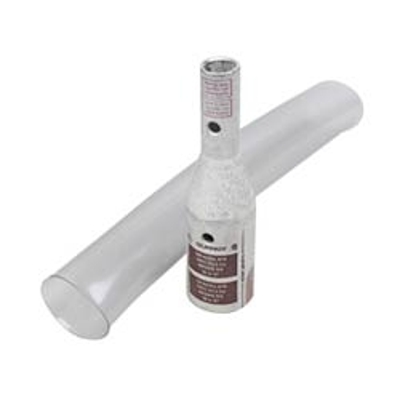

YSR3429FXLTCKITC, In-Line Reducer Splice Kit, 500 to 4/0, w/ Clear Heat Shrink and inspection window.

Burndy YSR3429FXLTCKITC, In-Line Reducer Splice Kit, 500 to 4/0, w/ Clear Heat Shrink

SKU
YSR3429FXLTCKITC

Product Details

Learn everything you want to know about this product to make an informed purchase

Burndy YSR3429FXLTCKITC -- In-Line Reducer Splice Kit, 500 MCM Code (A) to 4/0 AWG Flex (B) w/ Clear Heat Shrink and inspection window.

Description:

Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.

Color Code:
Side A Brown, Side B Yellow

Standards:
RoHS Compliance
Clear Heat Shrink -- UL 224 VW1

Electrical Ratings:
KVA:
35 kV
Minimum Voltage: 600
Maximum Voltage: 35000

Specifications:

Size:
500 Code (A) to 4/0 Flex (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 1.69 inches, Wire Strip Length (1.60 inches)
Barrel B Size: 1.44 inches, Wire Strip Length (1.38 inches)


Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet for Complete Details

More Information
StockedYes
Wire Size30 AWG
