Burndy YSR32FX28FXLTCKITC, In-Line Reducer Splice Kit, 300 to 4/0, w/ Clear Heat Shrink

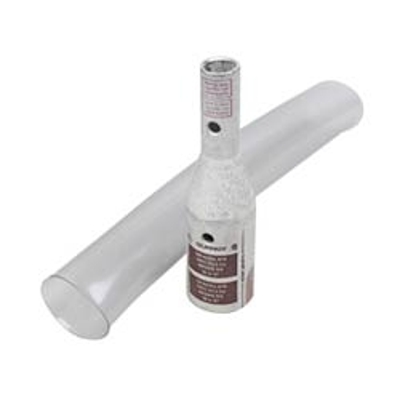

Burndy YSR32FX28FXLTCKITC -- In-Line Reducer Splice Kit, 300 MCM Code (A) to 4/0 Flex or Telco Flex (B) w/ Clear Heat Shrink and inspection window.

Description:
Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.

Color Code:
Side A Red, Side B Purple

Standards:
RoHS Compliance
Clear Heat Shrink -- UL224 VW1

Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000

Specifications:

Size: 300 MCM Flex (A) to 4/0 Flex or Telco Flex (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 1.57 inches, Wire Strip Length (1.48 inches)
Barrel B Size: 1.43 inches, Wire Strip Length (1.36 inches)


Spec Sheet

View Burndy Spec Sheet for Complete Details
