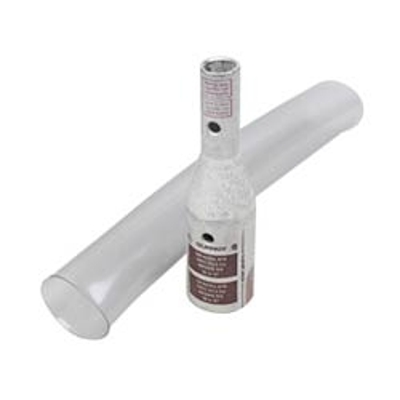

Burndy YSR312CFXLTCKITC, In-Line Reducer Splice Kit, 350 MCM to 2 AWG w/ Clear Heat Shrink and inspection window.
Burndy YSR312CFXLTCKITC, In-Line Reducer Splice Kit, 350 to 2 AWG w/ Clear Heat Shrink
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YSR312CFXLTCKITC -- In-Line Reducer Splice Kit, 350 Code (A) to 2 AWG Flex or Code (B), w/ Clear Heat Shrink and inspection window.
Description:
Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.
Color Code:
Side A Red, Side B Brown
Standards:
RoHS Compliance
Clear Heat Shrink -- UL224 VW1
Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000
Specifications:
Size: 350 MCM Code (A) to 2 AWG Flex or Code (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 1.49 inches, Wire Strip Length (1.41 inches)
Barrel B Size: 0.82 inches, Wire Strip Length (0.78 inches)
Spec Sheet
View Burndy Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
