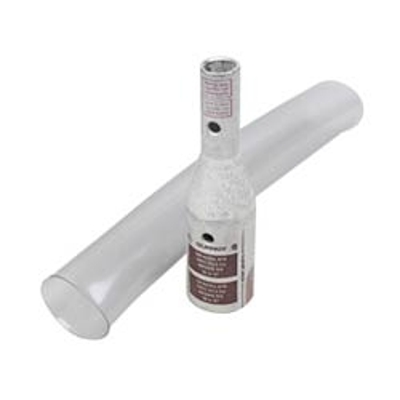

Burndy YSR3125FXLTCKITC, In-Line Reducer Splice Kit, 350 to 1/0, w/ Clear Heat Shrink

Burndy YSR3125FXLTCKITC -- In-Line Reducer Splice Kit, 350 MCM Code (A) to 1/0 AWG Flex or Code (B) w/ Clear Heat Shrink and inspection window.

Description:
Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.

Color Code:
Side A Red, Side B Pink

Standards:
RoHS Compliance
Clear Heat Shink -- UL224 VW1

Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000

Specifications:

Size: 350 Code (A) to 1/0 Flex or Code (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 1.49 inches, Wire Strip Length (1.41 inches)
Barrel B Size: 1.04 inches, Wire Strip Length (1.00 inches)


Spec Sheet

View Burndy Spec Sheet for Complete Details
