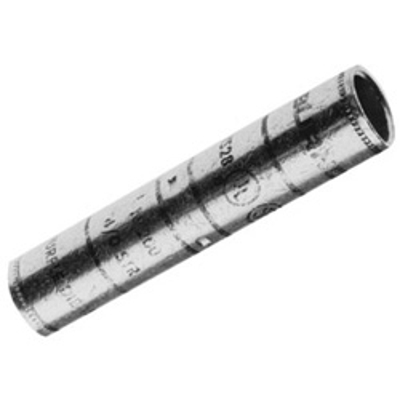

Burndy YS6C, 6 AWG, Compression Butt Splice, Long Barrel

SKU YS6C

dollar

$8.03
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Barrel Size

    Long

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Burndy YS6C -- Hylink Compression Butt Splice, 6 AWG, 2.38 Inches Splice Length, 1-3/16 Inch Strip Length, Chamfered, Long Barrel

Description:
Burndy Type YS Compression Butt Splice connectors are suitable for heavy-duty applications operating between 600 Volt - 35 Kilo-Volts. Connector color-coded, aids for easy identification. Splice connector has chamfered barrel and withstands temperature rating of 90 °C.

Color Code:
Blue

Standards:
RoHS Compliance
CSA Certified
UL468A-468B

Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000


Specifications:

Size: 6 AWG
Material: Copper
Plating Type: Electro Tin Plated
Splice Length: 2.38 inches
Strip Length: 1-3/16 inches


Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet for Complete Details
