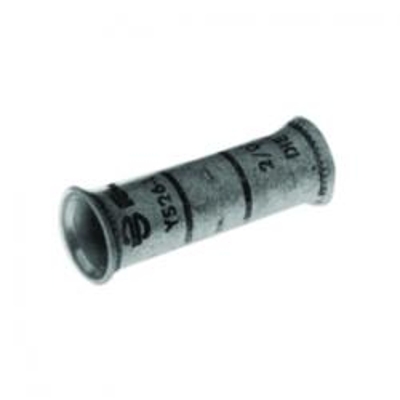

BurndyYS38FXB, 500 MCM Copper Compression Butt Splice, Long Barrel

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Burndy YS38FXB, 500 MCM, Compression Butt Splice, Long Barrel

SKU
YS38FXB

Product Details

Learn everything you want to know about this product to make an informed purchase

Burndy YS38FXB -- Hylink Compression Butt Splice, 500 MCM, 6.34 Inches Splice Length, 3-3/16 Inch Strip Length, YS-FXB, Belled, Long Barrel

Description:

Long barrel length Belled End, with high voltage terminations, 4 center conductor stops and provides a center wire stop for proper conductor insertion with high pull out force.

Color Code:
Pink

Standards:
RoHS Compliance
CSA Certified
UL468A-468B


Electrical Ratings:
KVA:
35 kV
Minimum Voltage: 600
Maximum Voltage: 35000


Specifications:

Size:
Flex (Class H, I, G, M, Copper Compact and Stranded) 500 MCM, DLO (1324/#24) 535.3 MCM
Material: Copper
Plating Type: Electro Tin Plated
Splice Length: 6.34 inches
Strip Length: 3-3/16 inches


Spec Sheet

Belden 9451 Spec SheetView Burndy Spec Sheet for Complete Details

More Information
Wire Size30 AWG
Barrel SizeLong
