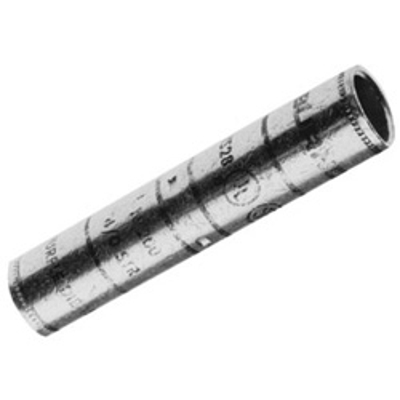

Burndy YS32, 400 MCM Compression Butt Splice, Long Barrel
In Stock
Burndy YS32, 400 MCM Copper Compression Butt Splice, Long Barrel
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YS32 -- Hylink Compression Butt Splice, 400 MCM, 400 (127) Navy, 4.62 Inches Splice Length, 2-1/16 Inch Strip Length, Chamfered Long Barrel
Description:
Burndy Type YS Compression Butt Splice connectors are suitable for heavy-duty applications operating between 600 Volt - 35 Kilo-Volts. Connector color-coded, aids for easy identification. Splice connector has chamfered barrel and withstands temperature rating of 90 °C.
Color Code:
Blue
Standards:
RoHS Compliance
CSA Certified
UL468A-468B
Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000
Operating Temperature: 90 °C
Specifications:
Size: 400 MCM, 400 (127) Navy
Material: Copper
Plating Type: Electro Tin Plated
Splice Length: 4.62 inches
Strip Length: 2-1/16 inches
Spec Sheet
View Burndy Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Barrel Size | Long |
